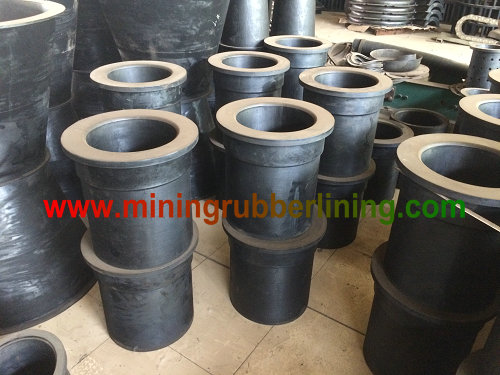

Rubber Feeding Box | Polyurethane Feed Box | Hydrocyclone Feeding Box Lining ( PU , Urethane )

The Feed Box Of The Hydrocyclone Is The Most Important Part Of The Whole Machine, Because It Is The First Link Of The Work, And It Undertakes The Impact Force Of The Main Medium. Only When The Feed Box Completely Absorbs The Kinetic Energy Of The Conveying Medium, Can The Machine Operate Normally. So The Feed Box Is Also The Most Seriously Worn Part Of The Whole Hydrocyclone.
In Order To Reduce The High Wear Of This Part, Our Company Specially Equipped The Hydrocyclone Feeding Box From Our Company Can Be Used Wear Resistant Rubber, Polyurethane (Pu, Urethane) And Silicon Carbide (SIC) For This Materials.
Hydrocyclone Silicon Carbide Feed Box Is Mainly Used In Low-Speed, Low Flow And High Wear Environment.
Hydrocyclone Polyurethane Feed Box Is Mainly Used In The Environment With Small Particles, High Flow Rate And High Flow Rate.
The Hydrocyclone Rubber Feed Box Is Between The Two, Widely Used And Easy To Replace.
At Present, The Rubber Feed Box Produced By Our Company Is Widely Used In The Largest Copper Mine In Mongolia And Several Of The Most Important Iron And Gold Mines In Australia.
Performance And Advantages:
Good Wear Resistance: Enough To Block The Transmission Medium And Steel Shell From Direct Wear.
Excellent Impact Resistance: Rubber And Polyurethane Generally Have High Elastic Properties, Which Make Up For The Risk Of Impact Absorption Of Steel Shell.
High Strength: Good Wear Resistance, Effectively Avoid Water Hammer Damage. It Can Slow Down The Damage Of Water Hammer
High Corrosion Resistance: Excellent Corrosion Resistance
Acid, Alkali And Corrosion Resistance
Prevent The Skeleton From Chemical Damage
Slow Down Dirt: The Inner Surface Of Polyurethane Or Rubber Is Smooth And Almost Free Of Scaling
The Lining Has Strong Adhesion And Can Be Firmly Lined With The Inner Surface Wall Of The Steel Framework.
Low Running Resistance Can Reduce Energy Consumption
The Transmission Medium Resistance Is Very Small
It Can Be Transported By a Variety Of Fluid Media
The Service Life Can Be More Than 5 Years
Energy Saving, Environmental Protection And High Efficiency
High Temperature Resistance
Wide Temperature Range: Working Temperature Within 80 ℃.
Main Delivery Medium: Wear And Corrosion Medium, Mud Medium.
It Can Reduce The Impact Wear Of The Conveying Medium On The Steel Tube Frame Wall
Light Weight, Easy To Install, Maintain And Transport;
It Can Be Recycled, The Worn Lining Can Be Removed, And a New Lining Can Be Installed, Which Can Be Reused.
