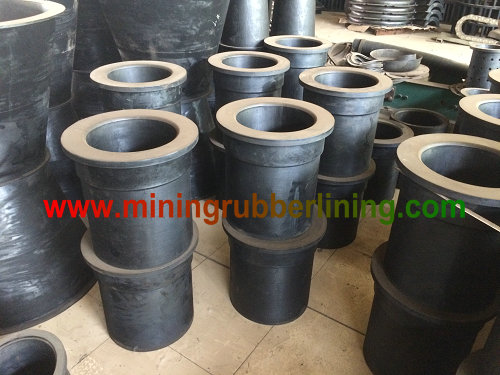

Hydrocyclone Rubber Cone Linings | Polyurethane Cone Parts For Hydro Cyclone ( PU , Urethane )

Hydrocyclone Cone Lining Is Mainly Used In The Middle And Lower Parts Of Hydrocyclone . Because The Hydrocyclone Has An Inverted Cone Structure As a Whole , The Main Part Of Hydrocyclone Is Cone-Shaped Structure , And The Cone Part Of Some Small Size Hydrocyclones Is Only a Part , But For Medium-Sized And Large Scale Hydrocyclones , The Main Part Is Composed Of Two Or Three Cones .
The Cone Parts Connection Of The Hydrocyclone Adopts The Flange Structure And Is Fixed By Bolts And Nuts . The Flange Structure Is Selected For The Inner Rubber Liner To Ensure That The Connection And Sealing Performance Of The Hydrocyclone Cone Is Good , And It Is Not Easy To Leak , So As To Ensure The Normal Operation Of The Hydrocyclone . Therefore , The Inner Liner Of Hydrocyclone Mostly Adopts Rubber Turnover Cone-Shaped Body Liner , That Is To Say , It Is a Kind Of Rubber Cone-Shaped Body With Flange At Both Ends As The Inner Liner Of The Main Working Part Of Hydrocyclone .
As For The Flange At Both Ends Of The Rubber Cone Inner Liner Of The Hydrocyclone , It Is Difficult For The Flange Hole Of The Rubber Liner To Align With The Flange Hole Of The External Steel Framework . Because It Is Usually Inserted By External Force During The Installation Process . Therefore , In The Production Process , It Is Very Rare To Produce The Flange With Tapered Rubber Lining Into a Hole Shape , But Not a Rubber Flange With a Hole .
In The Process Of Installation, It Is Necessary To Use Punching Equipment To Punch Out The Rubber Flange. This Operation Occurs After The Installation And Before The Use Of Bolts And Nuts.
Hydrocyclone Cone Liner From Our Company Can Be Use Wear Resistant Rubber , Polyurethane ( PU , Urethane ) And Silicon Carbide ( SiC) For this Materials.
Feature:
High Wear Resistance: Impact Resistance
High Strength: Good Anti-Abrasion, Effectively Avoid Damage Caused By Water Hammer
High Corrosion Resistance: Fine Anti-Corrosion
Acid Resistance, Alkali Resistance, Corrosion Resistance
Prevent Chemical Damage To Skeleton Frame
Slowing Down Fouling
Adhesion Of Lining Is Very Strong
Less Running Resistance Can Reduce Energy Consumption
Transmission Medium Resistance Is Very Small
Can Be Transported By a Wide Variety Of Fluid Media
Working Service Life Can Be Above To 5 Years
Energy Saving, Environmental Protection, High Efficiency
High Temperature Resistance
Adapting To Wide Range Of Temperature: Working Temperature: -50℃～+150℃
Main Transport Medium:Wear And Corrosive Medium Slurry Medium
Can Reduces The Impact Abrasion Of The Conveying Medium On The Steel Pipe Skeleton Frame Wall
Light Weight, Easy To Install, Maintain And Transport;
Recycling And Reusing.
